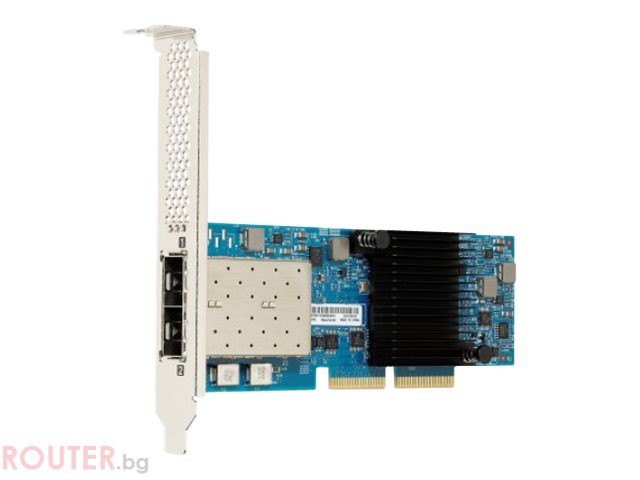

Мрежово устройство Lenovo Thinksystem Emulex Vfa5.2 Ml2 Dual Port 10gbe Sfp+ Adapter 00AG560

Hover on above image to view it large

Още изгледи

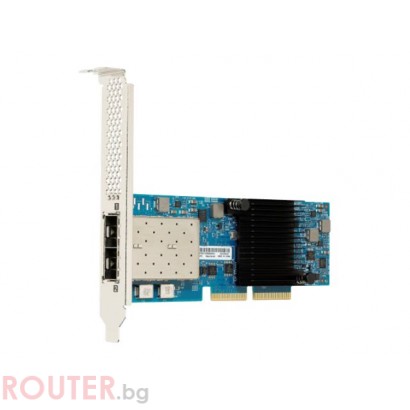

Мрежово устройство Lenovo Thinksystem Emulex Vfa5.2 Ml2 Dual Port 10gbe Sfp+ Adapter 00AG560

Продуктов номер: 00AG560

Дайте първото мнение за този продукт

Наличност: Неналичен

326,59 лв.

Бърз преглед

LENOVO ThinkSystem Emulex VFA5.2 ML2 Dual Port 10GbE SFP+ Adapter

Детайли

Marketing Description
The Emulex Virtual Fabric Adapter 5 Generation 2 (VFA5.2) Network Adapter Family for system x builds on the foundation of the previous generation of Emulex VFA5 adapters by delivering performance enhancements, including RoCE v2 support and management enhancements with improved support for Lenovo XClarity. These features help reduce complexity, reduce cost, and improve performance with Lenovo servers.
Product Features
  • Virtual NIC emulation
    The Emulex VFA5.2 supports three NIC virtualization modes right out of the box: Virtual Fabric mode (vNIC1), switch independent mode (vNIC2), and Unified Fabric Port (UFP). With NIC virtualization, each of the two physical ports on the adapter can be logically configured to emulate up to four virtual NIC (vNIC) functions with user-definable bandwidth settings. Additionally, each physical port can simultaneously support a storage protocol (FCoE or iSCSI).
  • Common drivers and tools
    You can deploy faster and manage less when you use both Virtual Fabric Adapters (VFAs) and Host Bus Adapters (HBAs) that are developed by Emulex. VFAs and HBAs developed by Emulex use the same installation and configuration process, streamlining the effort to get your server configured and running, saving you valuable time. They also use the same Fiber Channel drivers, reducing time to qualify and manage storage connectivity. With Emulex's OneCommand Manager, you can manage VFAs and HBAs that are developed by Emulex through the data center from a single console.
  • VXLAN/NVGRE offload technology
    Emulex supports Microsoft's network virtualization using generic routing encapsulation (NVGRE) and VMware's virtual extensible LAN (VXLAN). These technologies create more logical LANs (for traffic isolation) that are needed by cloud architectures. Because these protocols increase the processing burden on the server's CPU, the VFA5.2 has an offload engine specifically designed for processing these tags. The resulting benefit is that cloud providers can leverage the benefits of VXLAN/NVGRE with no reduction in the server's performance.
General
Device Type Network adapter
Form Factor Plug-in card
Interface (Bus) Type PCI Express 3.0 x8 Mezzanine
Networking
Ports 10Gb Ethernet x 2
Connectivity Technology Wired
Data Link Protocol 10 Gigabit Ethernet
Data Transfer Rate 10 Gbps
Capacity MAC addresses per port: 128
Network / Transport Protocol TCP/IP, UDP/IP
Features MAC address filtering, IPv6 support, Data Center Bridging Exchange (DCBX) support, enhanced transmission selection, IPv4 and IPv6 Large Send Offload and Checksum Offload (LSO/TCO), NDIS 6 IPSec task offload compliant, Quality of Service (QoS), Jumbo Frames support, Receive Side Scaling (RSS), Single Root I/O Virtualization (SR-IOV), Link Aggregation Control Protocol (LACP), Data Center Bridging (DCB), Extended Message-Signaled Interrupts (MSI-X), Converged Enhanced Ethernet (CEE), Edge Virtual Bridging (EVB), TCP/IP checksum offload, UDP/IP checksum offload, Unified Fabric Port (UFP), Priority-Based Flow Control (PFC), Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE), RDMA over Converged Ethernet (RoCE) v2, Virtual Fabric mode, Switch Independent mode, Virtual Ethernet Bridge (VEB)
Compliant Standards IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3p, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qbg
Expansion / Connectivity
Interfaces 2 x 10Gb Ethernet - SFP+
Power
Power Consumption Operational 14.4 Watt
Software / System Requirements
OS Required SuSE Linux Enterprise Server 11 for x86/AMD64/Intel EM64T, Red Hat Linux Enterprise Server 6 x64 Edition, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 7, SUSE LINUX Enterprise Server 11 with Xen for AMD64/EM64T, VMware vSphere 5.5 (ESXi), SuSE Linux Enterprise Server 12, VMware vSphere 6.0 (ESXi), SuSE Linux Enterprise Server 12 with Xen
Dimensions & Weight
Width 1.7 cm
Depth 16.8 cm
Height 6.9 cm
Manufacturer Warranty
Service & Support Limited warranty - 1 year
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 55 °C
Humidity Range Operating 5 - 95% (non-condensing)
Compatibility Information
Designed For Lenovo NeXtScale nx360 M5 5465
Lenovo System x3500 M5 5464
Lenovo System x3550 M5 5463
Lenovo System x3650 M5 5462
Lenovo System x3750 M4 8753
Lenovo System x3850 X6 6241
Lenovo System x3950 X6 6241
Lenovo ThinkAgile VX Certified Node 7Y94, 7Z12
Lenovo ThinkAgile VX7820 Appliance 7Z13
Lenovo ThinkSystem SR530
Lenovo ThinkSystem SR550
Lenovo ThinkSystem SR570
Lenovo ThinkSystem SR590
Lenovo ThinkSystem SR630
Lenovo ThinkSystem SR650

Допълнителна информация

Производител LENOVO
Гаранционен срок (месеца) 12
