Детайли
| Marketing Description | |

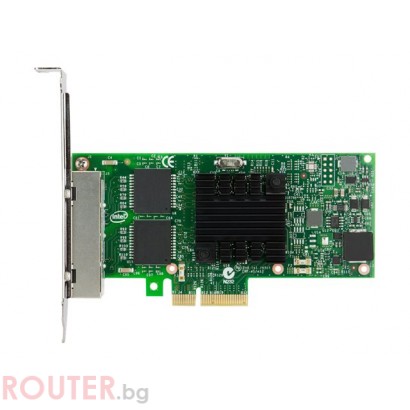

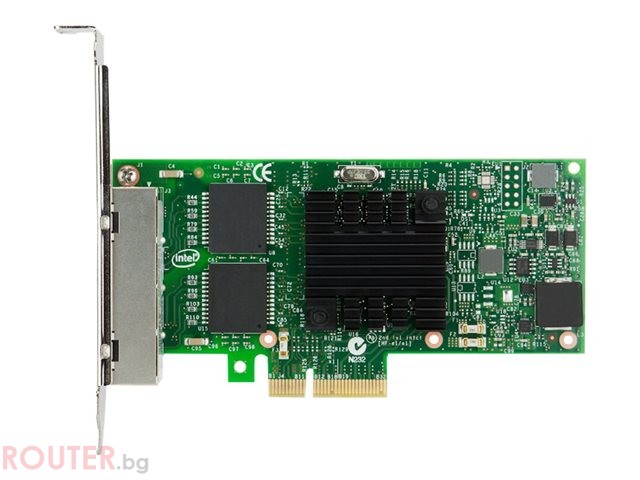

| Based on the Intel I350 Gigabit Ethernet adapters from Lenovo build on Intel's history of delivering Ethernet products with flexible design and robust driver support. Mezzanine LAN-on-Motherboard Generation 2 (ML2) is a the cost-effective adapter form factor for System x servers that offers the flexibility advantages of a PCIe adapter while supporting integrated networking features such as Wake-on-LAN and direct connectivity to the server's IMM2 service processor for out-of-band systems management. | |
| Product Features | |
| |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 2.0 x4 |
| Networking | |
| Ports | 1000Base-T x 4 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 1000Base-T |
| Data Link Protocol | Gigabit Ethernet |
| Data Transfer Rate | 1 Gbps |
| Capacity | Jumbo frame size: 9500 |
| Features | Wake on LAN (WOL), auto-uplink (auto MDI/MDI-X), Intel I/O Acceleration Technology (I/OAT), Virtual Machine Device Queues (VMDq), PXE support, Receive Side Scaling (RSS), Single Root I/O Virtualization (SR-IOV), Intel QuickData Technology, Extended Message-Signaled Interrupts (MSI-X), TCP/IP checksum offload, Virtual Ethernet Port Aggregator (VEPA), Message Signaled Interrupts (MSI) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az, IEEE 1588-2008 |
| Processor / Memory | |
| Processor | 1 x Intel I350 |
| Expansion / Connectivity | |
| Interfaces | 2 x 1000Base-T - RJ-45 |
| Miscellaneous | |
| Included Accessories | Low-profile bracket |
| Power | |
| Power Consumption Operational | 5.9 Watt |
| Dimensions & Weight | |
| Width | 1.7 cm |
| Depth | 13.5 cm |
| Height | 6.9 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 55 °C |
| Humidity Range Operating | 5 - 85% (non-condensing) |
| Compatibility Information | |
| Designed For | Lenovo ThinkAgile MX3330-F Appliance 7D19 Lenovo ThinkAgile MX3330-H Appliance 7D19 Lenovo ThinkAgile MX3331-F Certified Node 7D67 Lenovo ThinkAgile MX3331-H Certified Node 7D67 Lenovo ThinkAgile MX3530-H Hybrid Appliance 7D6B Lenovo ThinkAgile MX3531-H Hybrid Certified Node 7D66 Lenovo ThinkAgile VX 1SE Certified Node 7Z58 Lenovo ThinkAgile VX Certified Node 7Y94, 7Z12 Lenovo ThinkAgile VX1320 Appliance 7Z58 Lenovo ThinkAgile VX2330 Appliance 7Z62 Lenovo ThinkAgile VX3330 Appliance 7Z62 Lenovo ThinkAgile VX3331 7Z62 Lenovo ThinkAgile VX3530-G Appliance 7Z63 Lenovo ThinkAgile VX3575-G Integrated System 7D43 Lenovo ThinkAgile VX5520 Appliance 7Y94 Lenovo ThinkAgile VX5530 Appliance 7Z63 Lenovo ThinkAgile VX5575 Integrated System 7D43 Lenovo ThinkAgile VX7330-N Appliance 7Z62 Lenovo ThinkAgile VX7530 Appliance 7Z63 Lenovo ThinkAgile VX7575 Integrated System 7D43 Lenovo ThinkAgile VX7576 Certified Node 7D43 Lenovo ThinkAgile VX7820 Appliance 7Z13 Lenovo ThinkSystem SD530 Lenovo ThinkSystem SR250 Lenovo ThinkSystem SR530 Lenovo ThinkSystem SR550 Lenovo ThinkSystem SR570 Lenovo ThinkSystem SR590 Lenovo ThinkSystem SR630 Lenovo ThinkSystem SR630 V2 7Z71 Lenovo ThinkSystem SR645 7D2X Lenovo ThinkSystem SR650 Lenovo ThinkSystem SR650 V2 7D15, 7Z73 Lenovo ThinkSystem SR665 7D2V, 7D2W Lenovo ThinkSystem SR670 V2 7Z23 Lenovo ThinkSystem SR850 Lenovo ThinkSystem SR950 Lenovo ThinkSystem ST250 Lenovo ThinkSystem ST50 Lenovo ThinkSystem ST550 Lenovo ThinkSystem ST650 V2 7Z74, 7Z75 |
Допълнителна информация
| Производител | LENOVO |
|---|---|
| Гаранционен срок (месеца) | 12 |
