  • Мрежова точка за достъп Cisco Catalyst 9115ax Access Point Wi-fi 6 802.11ax External Antennas Dna Subscription Required C9115AXE-E

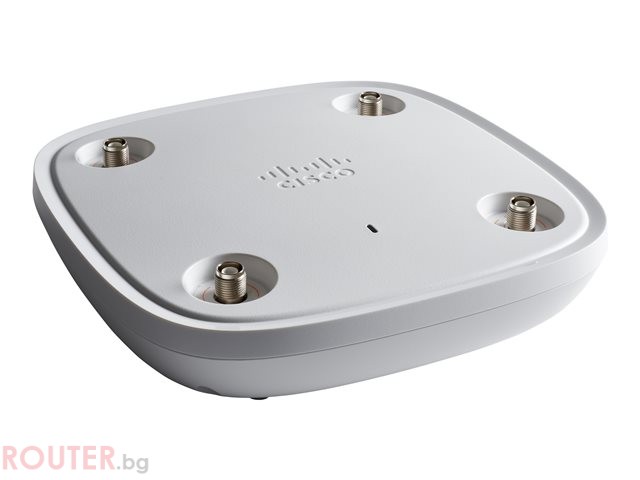

Мрежова точка за достъп Cisco Catalyst 9115ax Access Point Wi-fi 6 802.11ax External Antennas Dna Subscription Required C9115AXE-E

Hover on above image to view it large

Още изгледи

Мрежова точка за достъп Cisco Catalyst 9115ax Access Point Wi-fi 6 802.11ax External Antennas Dna Subscription Required C9115AXE-E

Продуктов номер: C9115AXE-E

Дайте първото мнение за този продукт

Наличност: Неналичен

1 260,70 лв.

Бърз преглед

CISCO Catalyst 9115AX Access Point Wi-Fi 6 802.11ax external antennas DNA subscription required

Детайли

Marketing Description
Hyperconnectivity with steady performance in demanding environments. Exponential growth of Internet of Things (IoT) devices and next-generation applications. Advanced persistent security threats. All of these require a wireless network that provides resiliency and superior connectivity, integrated security with advanced classification and containment, and hardware and software innovations to automate, secure, and simplify networks. Updating your wireless infrastructure to one that will meet these needs is paramount for today's digital business. The next generation of Cisco Catalyst 9100 Access Points, with high-performance Wi-Fi 6 (802.11ax) capabilities and innovations in RF performance, security, and analytics, enables end-to-end digitization and helps accelerate the rollout of business services by delivering beyond Wi-Fi.
The Cisco Catalyst 9115 Series Access Points are enterprise-class products that will address your current and future needs. They are the first step to updating your network to take better example of all of the features and benefits that Wi-Fi 6 provides.
Product Features
  • 802.11ax (Wi-Fi 6)
    The IEEE 802.11ax emerging standard, also known as High-Efficiency-Wireless (HEW) or Wi-Fi 6, builds on 802.11ac. It will deliver a better experience in typical environments and more predictable performance for advanced applications such as 4K or 8K video, high-density, high-definition collaboration apps, all-wireless offices, and IoT. 802.11ax is designed to use both the 2.4-Ghz and 5-GHz bands, unlike the 802.11ac standard.
  • Uplink/downlink OFDMA
    OFDMA-based scheduling splits the bandwidth into smaller chunks called Resource Units (RUs), which can be allocated to individual clients in both the downlink and uplink directions to reduce overhead and latency.
  • MU-MIMO technology
    Supporting four spatial streams, MU-MIMO enables access points to split spatial streams between client devices, to maximize throughput.
  • BSS coloring
    Spatial reuse (also known as Basic Service Set [BSS] coloring) allows the Access Points (APs) and their clients to differentiate between BSSs, thus permitting more simultaneous transmissions.
  • Target wake time
    A power savings mode called Target Wake Time (TWT) allows the client to stay asleep and to wake up only at prescheduled (target) times to exchange data with the AP. This offers significant energy savings for battery-operated devices, up to 3x to 4x compared to 802.11n and 802.11ac.
  • Cisco Mobility Express
    Mobility Express is designed for networks of all sizes, including small and medium-sized businesses and distributed enterprises. It provides industry-leading wireless LAN technology without the need for a physical controller or additional licenses.
  • Multigigabit Ethernet support
    Provides uplink speeds of 2.5 Gbps, in addition to 100 Mbps and 1 Gbps. All speeds are supported on Category 5e cabling for an industry first, as well as 10GBASE-T (IEEE 802.3bz) cabling.
  • Bluetooth 5.0
    Integrated Bluetooth Low Energy (BLE) 5.0 radio to enable IoT use cases such as location tracking and wayfinding.
General
Device Type Radio access point
Ruggedized Design Indoor
Width 20.3 cm
Depth 20.3 cm
Height 4.3 cm
Weight 1.1 kg
Localisation Belgium, Jordan, Lebanon, Qatar, Albania, Bulgaria, Czech Republic, Estonia, Lithuania, Mongolia, Iceland, Romania, Sri Lanka, Luxembourg, Hungary, Cyprus, Iraq, Trinidad, Jamaica, Algeria, Liechtenstein, Gibraltar, Malta, Morocco, Monaco, Croatia, Macedonia, Slovakia, Slovenia, Latvia, Libya, Mauritius, Austria, Denmark, Finland, France, Germany, Italy, Netherlands, Norway, Poland, Portugal, Spain, Sweden, Switzerland, United Kingdom, Greece, Turkey, Ireland, Bahamas, Serbia, Montenegro, Bosnia and Herzegovina
Processor / Memory / Storage
RAM 2 GB
Flash Memory 1 GB
Networking
Form Factor External
Connectivity Technology Wireless
Line Coding Format OFDMA
Data Link Protocol IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6)
Network / Transport Protocol IPSec, IPv6
Remote Management Protocol NETCONF, RESTCONF
Frequency Band 2.4 GHz, 5 GHz
Status Indicators Status
Features DFS support, Access Control List (ACL) support, Quality of Service (QoS), Maximum Ratio Combining (MRC), Cisco VideoStream technology, radio resource management (RRM), cyclic shift diversity (CSD), beamforming technology, packet aggregation A-MPDU, packet aggregation A-MSDU, Pre-Shared Key (PSK), Dynamic QoS, guest access, 4x4 MU-MIMO technology, secure boot, 8x8 MU-MIMO technology, Target Wait Time (TWT), image signing, Cisco Trust Anchor module
Encryption Algorithm AES, TLS, PEAP, TTLS, WPA, WPA2, FIPS, EAP-SIM, EAP-FAST
Authentication Method MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM
Compliant Standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.11d, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac Wave 2, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.11ax, Wi-Fi CERTIFIED 6
Internet of Things (IoT)
Internet of Things (IoT) Compatible Yes
Communications Technology Bluetooth Low Energy (LE)
Expansion / Connectivity
Interfaces 1 x 1/2.5GBase-T - RJ-45
1 x management - RJ-45
1 x USB 2.0
4 x aerial
Miscellaneous
Included Accessories Low profile bracket, ceiling grid clip
Compliant Standards CISPR 24, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, AS/NZS 60950-1, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 4268, FCC CFR47 Part 15 C, FCC CFR47 Part 15 B, VCCI V-3, EN 62209-1, SRRC, EN 300 328, CNS 13438, EN 50385, EN 62209-2, EN 60601-1-1, EN 301 489-1, LP0002, RSS-247, KN32, AS/NZS CISPR 32 Class B, USGv6, TCVN 7189, EN 301 893, CISPR 32, EN 55032, CAN/CSA-C22.2 No. 60950-1, EN 55035, EMI Class B, EN 301 489-17, AS/NZS 2772, ARPANSA, KN 61000-3-2, KN 61000-3-3, KN 489-1, QCVN, KN 489-17, RSP-100, RSS-GEN
Power
Power Over Ethernet (PoE) Supported UPOE
Software / System Requirements
Software Included CAPWAP Software Image
Manufacturer Warranty
Service & Support Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature -20 °C
Max Operating Temperature 50 °C
Humidity Range Operating 10 - 90% (non-condensing)

Допълнителна информация

Производител CISCO
Гаранционен срок (месеца) 60
