| Description 90IG0150-BM3D10 |
|---|

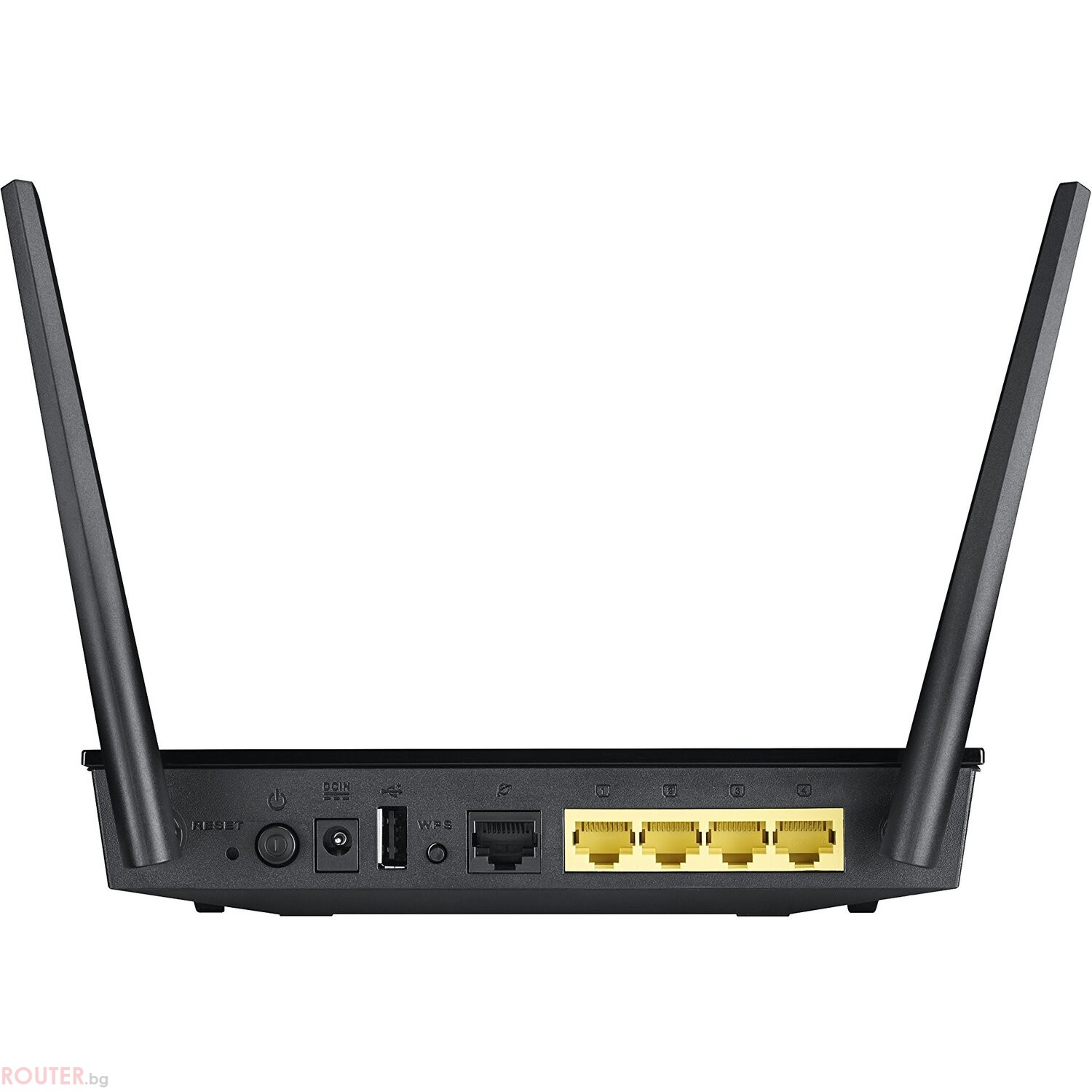

| | Interface | WPS Button, Reset Button, Power Button;1 x RJ11 for xDSL; 2 x RJ45 for WAN/LAN;1 x USB 2.0; LAN: 4x10 / 100Base-T; WAN: 1x10 / 100Base-T |
| | Standarts | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.3, IEEE 802.3u, IEEE 802.11i, IEEE 802.11e, IPv4, IPv6 |
| | Data rate | 802.11a : 6,9,12,18,24,36,48,54 Mbps; 802.11b : 1, 2, 5.5, 11 Mbps; 802.11g : 6,9,12,18,24,36,48,54 Mbps; 802.11n : up to 300 Mbps; 802.11ac : up to 433 Mbps; |
| | Frequency | 2.4GHz; 5GHz |
| | Vpn support | IPSec Pass-Through; PPTP Pass-Through; L2TP Pass-Through; PPTP server; OpenVPN server; PPTP client; L2TP client; OpenVPN client |
| | Security | WPA2-PSK; WPA2-Enterprise; WPS (Wi-Fi Protected Setup); SPI Firewall (Stateful Packet Inspection); 64/128-bit WEP; WPA-PSK; WPA-Enterprise; RADIUS |
| | Management | AC750 complete AC performance : 300+433 Mbps;Web-based GUI configuration; Firmware upgraded, configuration data uploaded and downloaded via Web-based GUI; UPnP IGD 1.0; Auto VPI/VCI detection; Configuration backup and restore; Diagnostics; Log & Trace function |
| | Power supply | AC Input : 100 ~240 V(50~60HZ); DC Output : 12 V/1 A |
| | Led indicator | Power, WLAN, LAN x 2, xDSL, 2.4 GHz Wi-Fi, 5 GHz Wi-Fi |
| | Other | Access control：Parental control, Network service filter, URL filter, Port filter |
| | Dimensions | 207 x 175 x 200 ~ mm |
| | Warranty | 36 Months |
