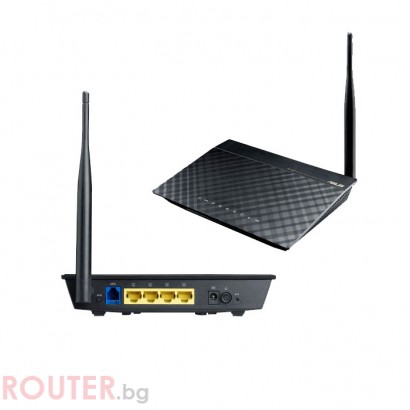

| Description DSL-N10E |
|---|
| | Manufacturer | ASUS |
| | Mnfr part # | - |
| | Model | DSL-N10E |
| | Interface | 1 x RJ11 for ADSL; 4 x RJ45 for 10/100 BaseT for LAN; Fixed 2 or 5 dBi antenna x 1; WPS Button, Reset Button, Power Button. |
| | Standarts | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u, IPv4 |
| | Data rate | G.992.1 (T1.413); G.992.2 (G.dmt), G.lite; G.992.3 (G.bis/ADS L2); G.992.5 (ADSL2+); Annex L (reach extended ADSL2). |
| | Frequency | 2.40 GHz |
| | Vpn support | - |
| | Security | 64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, Radius with 802.1x, WPS support |
| | Management | Web-based GUI configuration; Firmware upgraded, configuration data uploaded and downloaded via Web-based GUI; Configuration backup and restore; Diagnostics; Log & Trace function. |
| | Power supply | - |
| | Protocol | - |
| | Environment | Operating Temperature: -10 °C to 50 °C (14 °F to 122 ºF); Storage Temperature: -40 ° to 60 ° C (-40 °F to 140 °F); Operating Humidity: 5 % to 95 % (Non-condensing); Storage Humidity: 5 % to 95 % (Non-condensing). |
| | Certifications | CE |
| | Led indicator | Power, ADSL, Internet, WLAN, LAN x 4 |
| | Other | - |
| | Dimensions | 168 x 124 x 30 mm |
| | Warranty | 36 Months |
