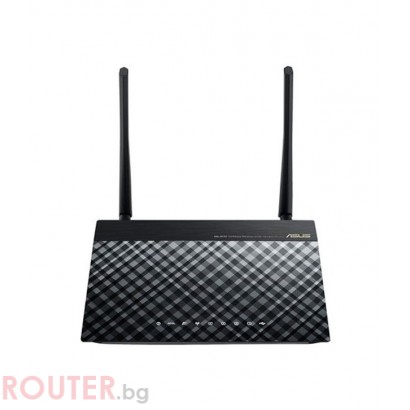

| Description DSL-N12U |
|---|
| | Manufacturer | ASUS |
| | Mnfr part # | - |
| | Model | DSL-N12U ADSL |
| | Interface | 1 x RJ11 for ADSL; 4 x RJ45 for 10/100 BaseT for LAN; Fixed 5 dBi antenna x 2; USB 2.0 x 1; WPS Button, Reset Button, Power Switch, Wireless on/off Switch. |
| | Standarts | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u, IEEE 802.11i, IEEE 802.11e, IPv4 |
| | Data rate | Wi-Fi Data Rate: 802.11b : 1, 2, 5.5, 11Mbps; 802.11g : 6,9,12,18,24,36,48,54Mbps; 802.11n : up to 300Mbps; xDSL Data Rate: ANSI T1.413 Issue 2; ITU-T G.992.1 Annex A (G.dmt); ITU-T G.992.2 (G.lite); ITU-T G.994.1 (G.hs); ITU-T G.992.3 (G.dmt.bis); ITU-T G.992.5 Annex A/M; ADSL 2/2+ 24Mbps downstream. |
| | Frequency | 2.40 GHz |
| | Vpn support | IPSec Pass-Throuth; PPTP Pass-Through; L2TP Pass-Through. |
| | Security | 64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise, WPA2-Enterprise, Radius with 802.1x, WPS support |
| | Management | Web-based GUI configuration; Firmware upgraded, configuration data uploaded and downloaded via Web-based GUI; UPnP IGD 1.0; Auto VPI/VCI detection; Configuration backup and restore; Diagnostics; Log & Trace function. |
| | Protocol | - |
| | Environment | Operating Temperature: -10 °C to 50 °C (14 °F to 122 ºF); Storage Temperature: -40 ° to 60 ° C (-40 °F to 140 °F); Operating Humidity: 5 % to 95 % (Non-condensing); Storage Humidity: 5 % to 95 % (Non-condensing). |
| | Certifications | CE, FCC, C-Tick, Telepermit, IC, IDA, NCC, PCT, Wi-Fi |
| | Led indicator | Power, ADSL, Internet, WLAN, LAN x 4 |
| | Dimensions | 179 x 119 x 37 mm |
| | Warranty | 36 Months |
